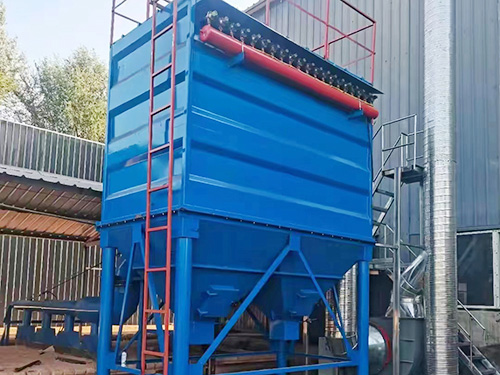

Industrial Dust CollectorAdopting AC Power Supply With High Power, It Is Generally Divided Into Two Types: Movable And Fixed. The Multiphase Mixture Involved In Industrial Dust Removal Is Called A Gas-phase Suspension System Or Aerosol. The Small Particles Dispersed In It Are Called Dust Particles Or Microparticles, And The Accumulation State Of Dust Particles Is Called Powder. In Order To Correctly Design And Select Dust Removal Equipment In Engineering Design, It Is Necessary To Master The Main Physical And Chemical Properties Of Dust. Parameters Used To Describe Dust Properties Include Particle Size And Dispersion, Density And Bulk Density, Cohesiveness, Wettability, Charge And Conductivity, Natural Packing Angle, And Explosiveness.
Pre Use Inspection: Open The Cylinder Cover To Check If The Dust Storage Bag Is Tightly Fastened, If The Suction Port Is Securely Fastened, And Cover The Cylinder Cover. Check The Power Supply Voltage, And If Necessary, Pay Attention To The Forward And Reverse Rotation Of The Motor.
Replacing The Belt: Some Industrial Dust Collectors That Use Belt Type Transmission Need To Replace The Conveyor Belt With A New One. Open The Back Door Of The Vacuum Cleaner For Replacement. If The Belt Is Loose, Open The Side Door And Adjust The Control Nut To The Appropriate Position.
Precautions During Use: Ordinary (non Actual Report Based) (actual Report Based) Machines Are Strictly Prohibited From Being Used In Flammable And Explosive Places; Non Special Material Filter Bags Should Not Absorb Burning Sparks And High-temperature Waste Materials; It Is Strictly Prohibited To Use Without A Dust Bag Or Filter, Otherwise It Will Directly Cause Damage To The Fan; When The Filter Bag Or Filter Is Damaged, It Should Be Replaced In A Timely Manner And Cannot Be Used Again; Vacuum Hose Must Not Be Flattened, Stepped On, Or Worn Out; The Temperature At The Outer Shell Of The Rear Box Is Relatively High, Especially After Working Continuously For A Long Time, Pay Attention To Getting Sick; Excessive Accumulation Of Debris In The Dust Storage Bin Should Be Cleaned In A Timely Manner, And The Filter Bags And Filters Should Be Regularly Cleaned To Ensure Smooth Operation; After The Vacuum Cleaner Is Overloaded, The Thermal Relay In The Control Box Will Automatically Cut Off The Power Supply. At This Time, It Is Necessary To Unplug The Power Plug, Investigate The Cause, And Wait For The Thermal Relay To Reset Before Using It; After Work Is Completed, The Power Should Be Cut Off And Placed In A Cool And Dry Place. This Can Effectively Extend The Service Life Of Industrial Dust Collectors.
Troubleshooting
High Noise - Causes: Severe Bearing Wear, Bent Shaft, Impeller Shaft Deformation Or Displacement, Loose Fasteners, Motor Wear (carbon Brush, Rotor, Bearings, Etc.), Loose Or Damaged Fan Blades, Etc.
Motor Overheating - Causes: Long Continuous Working Time, Excessive Sparks Caused By Wear Of Brushes And Rectifiers, Too Much Dust Sticking To The Dust Filter, And Full Dust In The Dust Collection Chamber.
Decreased Suction Force - Causes: Motor Failure, Brush Wear, Dust Filter Moisture, Dust Collection Chamber Full Of Dust, Hose And Suction Or Exhaust Port Blockage, Pipeline Leakage, Poor Interface Sealing, Etc.
Fuse (tube) Connection Blown - Causes: Short Circuit In Power Cord, Plug, Socket, Motor Coil, And Internal Wiring Of Vacuum Cleaner.
The Casing Is Electrified - The Cause Is That The Power Cord Is Aging, Resulting In Ground Leakage, And The Internal Circuit Of The Vacuum Cleaner Is In Contact With The Casing.
