XZZ Type Cyclone Dust CollectorSuitable For Capturing Dry Non Fibrous Granular Dust, The Main Feature Is That The Cylinder Has An Inverted Conical Shape, Which Reduces The Possibility Of Dust Containing Gas Short Circuiting From The Cylinder To The Outlet. It Is Also Equipped With A Conical Reflective Screen To Prevent The Separated Dust From Being Rewound By Two Air Flows.
Working Principle Of XZZ Cyclone Dust Collector:
When The Dusty Gas Flows Through The Contraction Shaped Tangential Direction And Enters The Volute Of The Dust Collector, It Rotates In A Spiral Shape From Top To Bottom. The Dust Particles Are Thrown Towards The Wall Of The Dust Collector Under The Action Of Centrifugal Force And Rotate Down Along The Wall, Entering The Specially Structured Sealed Dust Collection Device; The Purified Gas Rotates In An Internal Spiral Shape From Bottom To Top And Is Discharged Through The Core Tube.
Characteristics Of XZZ Type Cyclone Dust Collector:
The XZZ Cyclone Dust Collector Has The Characteristics Of Simple And Novel Structure, Moderate Resistance, Strong Load Adaptability, Stable And Excellent Operation, Low Steel Consumption, Small Footprint, Convenient Management And Maintenance, And Low Cost.

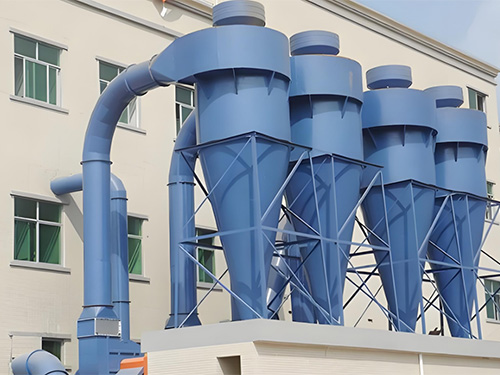

The XZZ Cyclone Dust Collector Can Be Used As A Single Unit Or In Combination With Multiple Cylinders, Connected By A Common Inlet And Outlet Main Pipe, To Meet The Treatment Of Any Flue Gas Volume. Each Individual Dust Removal Equipment Has Four Parts: Body, Volute, Core Tube, And A Sealed Dust Collection Device With Good Performance.
Classification Of XZZ Type Cyclone Dust Collector Structure:
According To Different Installation Positions, The XZZ Cyclone Dust Collector Has Four Structures, Namely Left And Right Rotation According To The Direction Of The Dust Collector. According To Different User Needs, There Are Two Types: A-type Ash Hopper And B-type Ash Box.
Construction Characteristics Of XZZ Cyclone Dust Collector:
1. Designed A Straight Through Side Chamber That Can Eliminate The Phenomenon Of Dust Rings And Is Not Easily Blocked.
2. Designed A Cone Structure That Is Close To A Straight Cylinder Shape, Eliminated The Formation Of The Lower Ash Ring, Avoided The Rebound Phenomenon Of Coarse Dust Particles In Local Wear, And Improved The Service Life And Dust Removal Efficiency.
3. A Device Has Been Designed To Prevent Secondary Dust From Flying In The Lower Part.
Application Of XZZ Type Cyclone Dust Collector:
XZZ Cyclone Dust Collector Is Mainly Used For Machine Burning Layer Combustion Of Hot Water Or Steam Boilers; The XZZ Cyclone Dust Collector Is Also Suitable For Other Industrial Dust Removal Needs.
